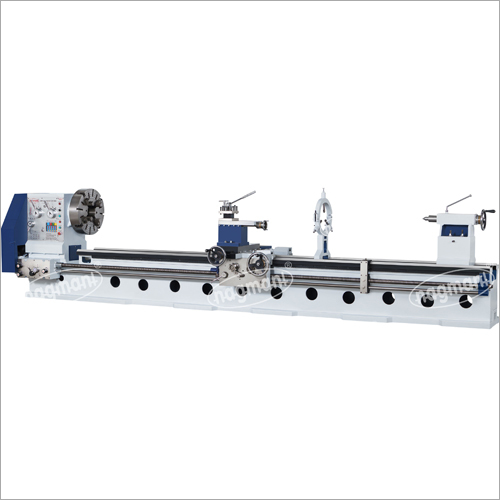

7 Feet Extra Heavy Duty Geared Head Lathe Machine

BED

EX HAG 406

EX HAG 457

EX HAG 508

                                                                                                                            Flat & V Guide Way with Gap

Width of Bed

18"(457)

20"(508)

22"(558)

Length of Bed

6"(150)

6"(150)

6"(150)

Length of Gapin Front of Fce Plate

8"(200)

8"(200)

10"(250)

CAPACITY

EX HAG 406

EX HAG 457

EX HAG 508

Height of Centre

16"(406)

18"(457)

20"(508)

Swing Over Bed

30"(760)

34"(860)

38"(950)

Swing Over Cross Slide

20"(500)

24"(600)

28"(700)

Swing In Gap

42"(1050)

46"(1150)

50"(1260)

Movement of Cross Slide

17"(430)

19"(480)

21"(525)

Movement of Compound Slide

9"(225)

9"(225)

9"(225)

MAIN SPIDLE

EX HAG 406

EX HAG 457

EX HAG 508

Type of Spindle

A2-8 type

A2-8 type

A2-8 type

Spindle Bore

104mm

104mm

104mm

Spindle Morse Taper

MT-6

MT-6

MT-6

Spindle Adapter Morse Taper

MT-4

MT-4

MT-4

No. of Speed / RPM Range

9 / 19-310 RPM

9 / 19-310 RPM

9 / 19-310 RPM

TAIL STOCK SPIDLE

EX HAG 406

EX HAG 457

EX HAG 508

Diameter

76mm

76mm

76mm

Morce Taper

MT-5

MT-5

MT-5

Travel

260mm

260mm

260mm

THREADS(FOR FULLY NORTON GEAR BOX.)

EX HAG 406

EX HAG 457

EX HAG 508

Metric Thread

(Total-24) / 0.5 to 15m.m

(Total-24) / 0.5 to 15m.m

(Total-24) / 0.5 to 15m.m

Inch Thread

(Total-43) / 2 to 60 TPI

(Total-43) / 2 to 60 TPI

(Total-43) / 2 to 60 TPI

Lead Screw Dia

50.8mm / 2TPI

50.8mm / 2TPI

50.8mm / 2TPI

ELECTRICALS

EX HAG 406

EX HAG 457

EX HAG 508

Motor Power

7.5 HP III Phase

7.5 HP III Phase

7.5 HP/10HP III Phase

MAIN SPIDLE

EX HAG 406

EX HAG 457

EX HAG 508

Type of Spindle

A2-8 type

A2-8 type

A2-8 type

Spindle Bore

104mm

104mm

104mm

Spindle Morse Taper

MT-6

MT-6

MT-6

Spindle Adapter Morse Taper

MT-4

MT-4

MT-4

No. of Speed / RPM Range

9 / 19-310 RPM

9 / 19-310 RPM

9 / 19-310 RPM
